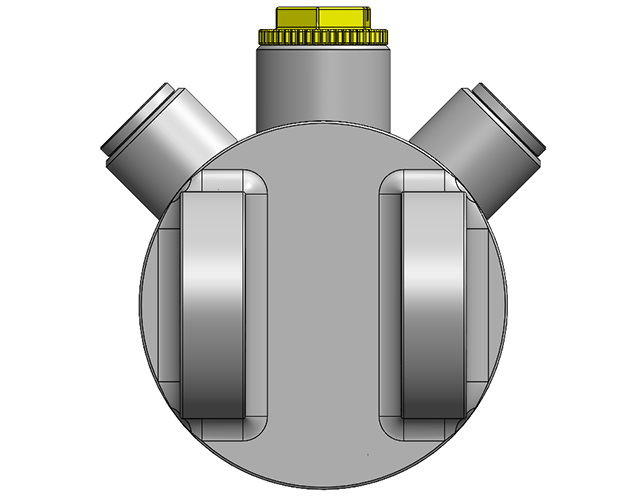

Board Lift Cylinder

The board lift cylinder is a core hydraulic actuator used in mechanical manufacturing, mold processing, and automated production lines to drive the board to achieve lifting or elevation movements. Its functions revolve around precise posture control of the sample, stable support, and collaborative operation.

Ød(mm）

35-65
ØD(mm）

65-100
S(mm）

200-500
L(mm）

400-700
PRESSORE (Mpa)

1O-21

Find a Dealer Leave a message

Specifications

Technical Parameter: Bore range: 65-100mm, rod range: 35-65mm, length: 400-700mm, operating pressure: 21MPa, maximum thrust: 16T.

Benefits & Features

Product Advantages: High-precision control, high load capacity, excellent safety performance, stable and reliable quality, and extremely high cost-effectiveness.

Application Industry: Paving machines
