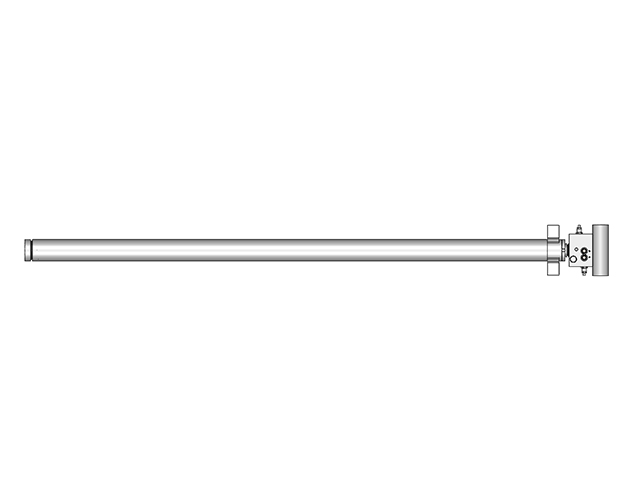

EXTENSION CYLINDER
The extension cylinder is installed inside the boom of a telescopic boom lift, driving the boom’s telescopic function. During telescopic operation, it must operate smoothly, without vibration or unusual noise.
Specifications

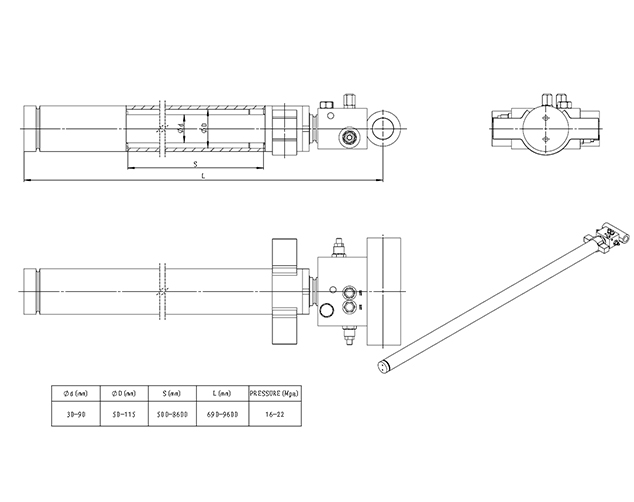

Technical Parameters: Bore range 50-115mm, rod range 30-90mm, length 690-9600mm, operating pressure 22MPa, maximum thrust up to 22T.
Benefits & Features
Product Advantages: Compact structure, high energy density, smooth operation, stable and reliable quality, and extremely high cost-effectiveness.
Application Industries: Used in aerial work platforms, telescopic boom trucks, telehandlers, etc.
