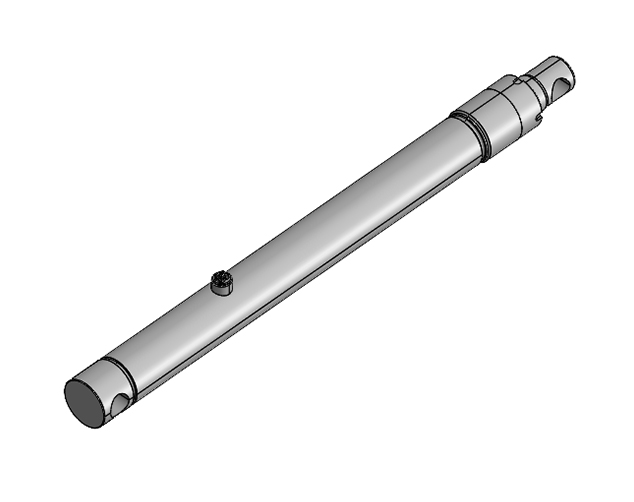

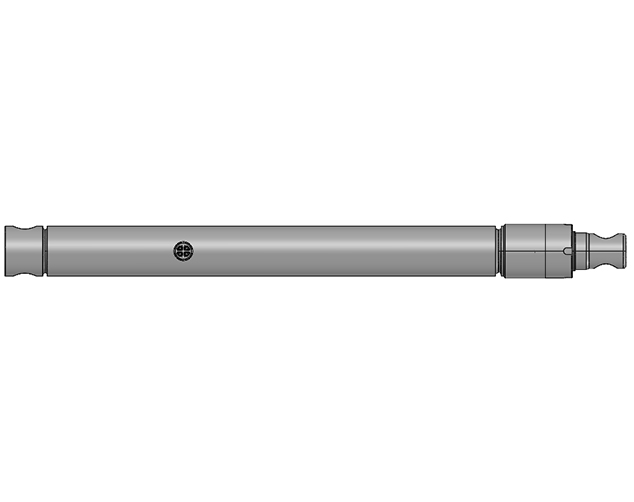

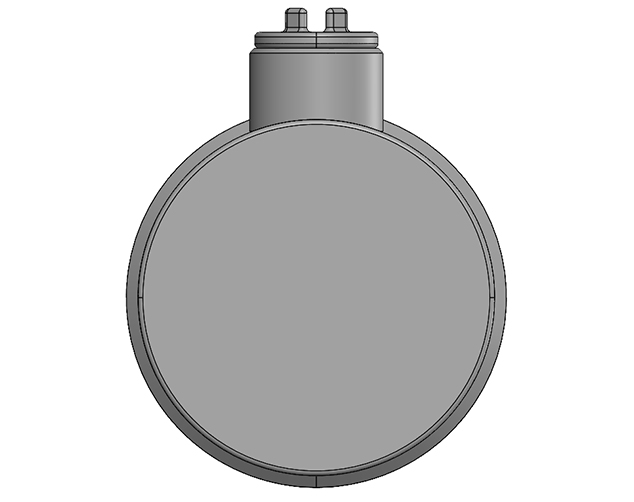

The feeder lift cylinder is the core hydraulic actuator in construction machinery that controls the lifting and lowering of the “feeder structure”. Its functions mainly include the attitude adjustment of the transitional structure, load support, and coordinated operation of the work.

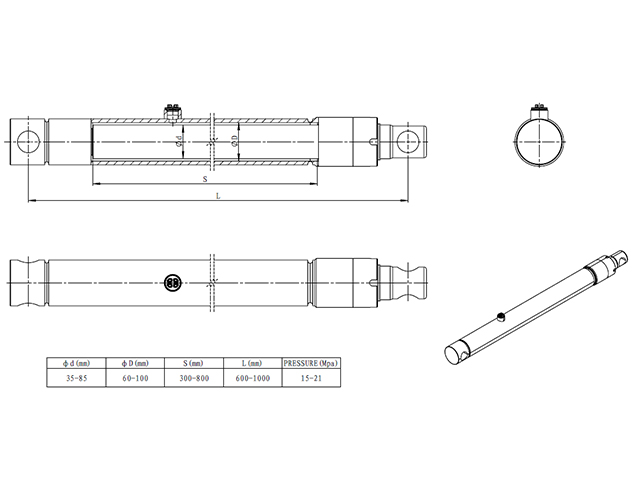

Technical Parameters: Bore range 50-100mm, rod range 35-85mm, length 600-1000mm, operating pressure 21MPa, maximum thrust up to 12T.
Product Advantages: Compact structure, high energy density, fast response, stable and reliable quality, and extremely high cost-effectiveness.
Application industry: Combine harvester, corn harvester, tractor, etc.
