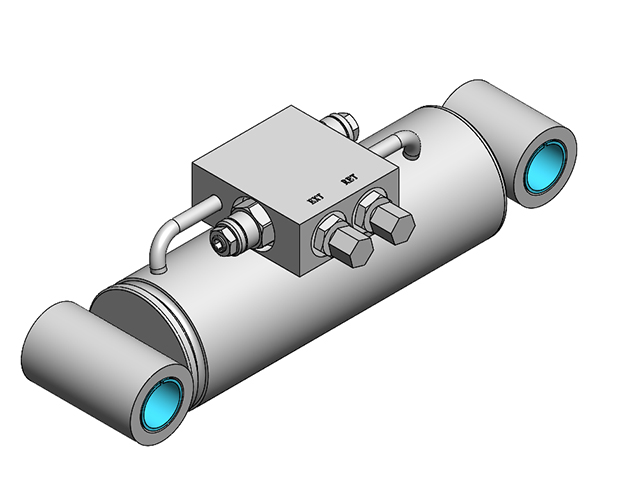

JIB CYLINDER
The jib lift cylinder is installed at the joint between the platform and the arm frame. It is a key hydraulic component that controls the horizontal rotation or luffing of the working arm.
Specifications

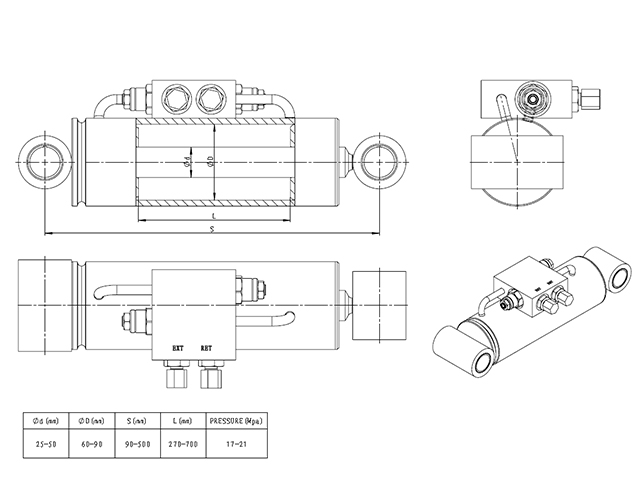

Technical Parameters: Bore range: 60-90mm, rod range: 25-50mm, length: 270-700mm, operating pressure: 21MPa, maximum thrust: 13T.
Benefits & Features
Product Advantages: Reliable performance, wide range of applications, simple and efficient operation, and easy installation and maintenance.
Application Industries: Suitable for aerial work platforms, such as telescopic boom lifts and articulated boom lifts.
