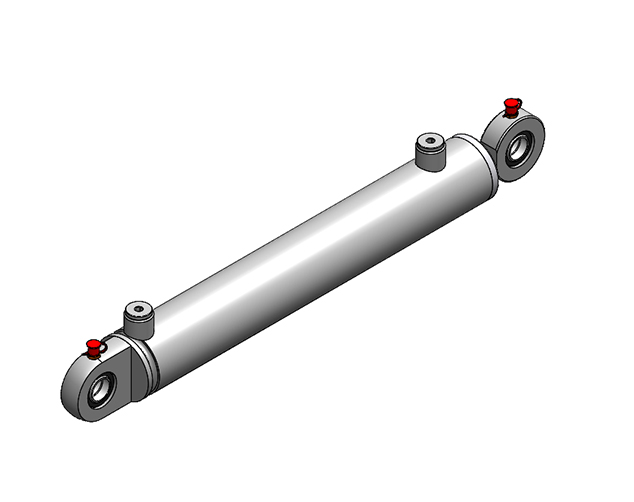

MASTER CYLINDER
The master cylinder is installed at the joint of the aerial work platform, and cooperates with the slave cylinder to realize the leveling action of the platform. It is required to run smoothly without shaking, abnormal noise, etc.
Specifications

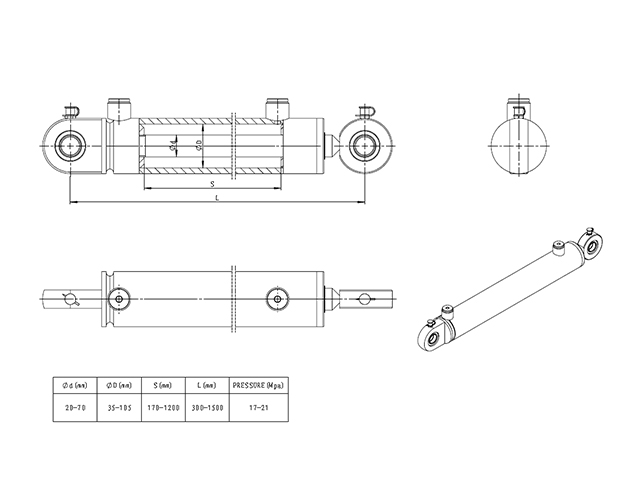

Technical Parameters: Bore range: 35-105mm, rod range: 20-70mm, length: 300-1500mm, operating pressure: 21MPa, maximum thrust: 18T.
Benefits & Features
Product Advantages: High control accuracy, fast response, strong drive capability, excellent operational stability, and easy installation and maintenance.
Application Industries: Suitable for aerial work platforms, including telescopic boom lifts, articulated boom lifts, and vehicle-mounted boom lifts.
