The installation position of the outrigger cylinder is closely related to the outrigger structure (such as H-type, X-type, frog-type, etc.). The core is to drive the outrigger to expand, retract and adjust the support height by connecting the chassis and the outrigger.

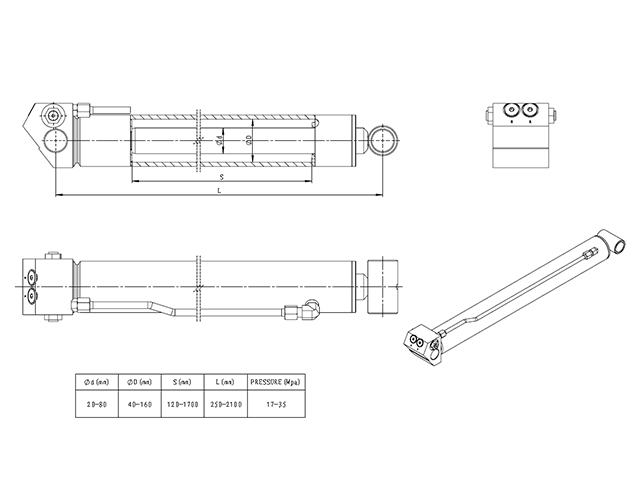

Technical Parameters: Bore range: 40-160mm, rod range: 20-80mm, length: 250-2100mm, operating pressure: 35MPa, maximum thrust: 70T.
Product Advantages: Strong load-bearing capacity, high stability, strong adaptability to harsh environments, and high safety performance.
Application Industries: Suitable for aerial work platforms, including telescopic boom lifts, articulated boom lifts, and scissor lifts.
