The top anchor bolt drilling machine

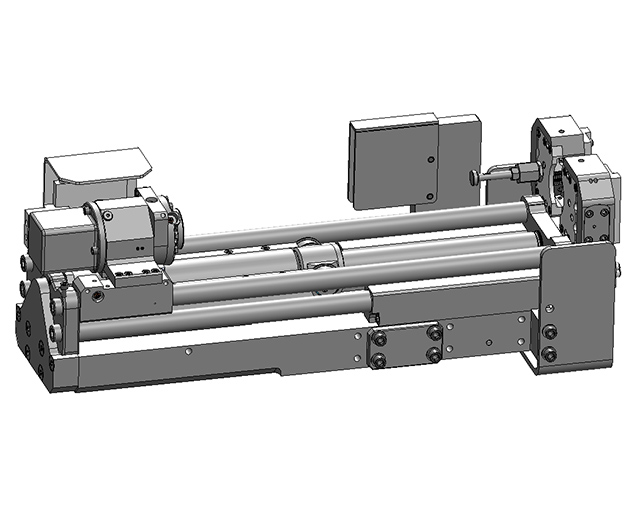

The Roof bolter is composed of the support part, the clamping part, the feed part and the drilling part. The oil circuits of these four parts are highly integrated internally, without the use of hard pipes and flexible hoses for connection. Therefore, it occupies a small volume, has a high space utilization rate, and the oil circuits are maintenance-free.

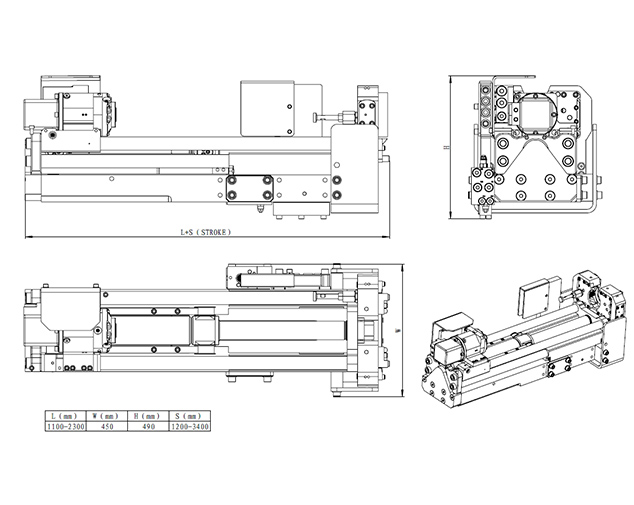

  • L(mm)
    1100-2300
  • W(mm)
    450
  • H(mm)
    490
  • S(mm)
    1200-3400
Specifications

Technical Parameters: Dimensions (L/W/H) = 2400 × 460 × 500 mm, Operating Pressure 21 MPa, Drilling Thrust 2 T, Stroke Range 1200-3400 mm.

Benefits & Features

Product Advantages: Integrated hydraulic circuit, compact structure, high energy density, stable and reliable quality, and excellent cost-effectiveness.

Application Industries: For anchor miners, anchor bolters, etc.
