Discover How Servo Cylinders Revolutionize Aerospace and Marine Applications

In the tough fields of aerospace and maritime engineering, mistakes are not an option. This holds for aircraft flight control systems or for keeping large ships steady in rough waters. The need for total accuracy and strong performance is essential. Locating a supplier that supplies top-quality, dependable parts for such harsh conditions can prove difficult.

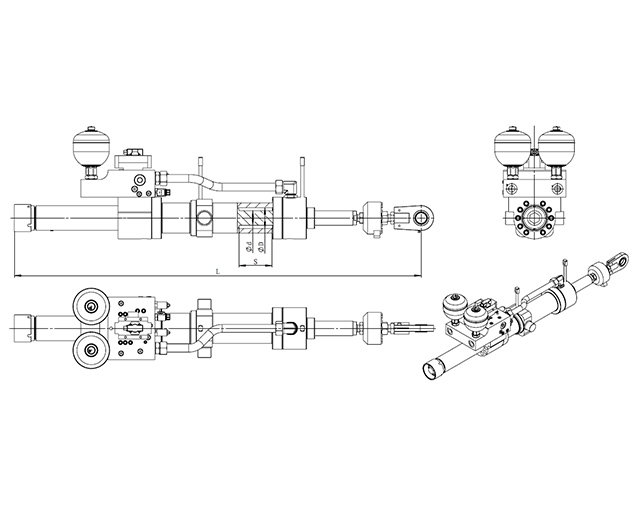

Understanding the Modern Servo Cylinder

A Servo Cylinder goes beyond a basic hydraulic actuator. It serves as a smart, high-output part with closed-loop oversight in a hydraulic setup. We blend the usual power of a hydraulic cylinder, which delivers solid straight-line movement, with modern servo management technology. As a result, this creates a device that handles position, speed, and force with remarkable exactness.

Principles of Closed-Loop Control

The core of our Servo Cylinder lies in closed-loop control. Standard cylinders just keep going until they reach a physical limit or a valve shuts off. In contrast, our servo setups include built-in sensors. These sensors send live data back to a controller. This setup permits ongoing small tweaks while in use. For exacting settings, such a system lets the cylinder hold a set spot or apply a specific force level. It does this even if outside loads shift.

Key Performance Specifications

Our Servo Cylinder series fits the varied demands of customers around the world. It comes with solid technical details.

Newstar Technical Design Highlights

When building a Servo Cylinder for top applications, we center on three main areas: transmission, sealing, and lasting strength.

Superior Dynamic Force Transmission

A servo system’s success relies on its ability to pass force smoothly during motion. We draw on a skilled R&D group of 45 experts. They craft cylinders that cut down on inside friction and boost quick response. Our Intelligent Assembly Line includes servo pump units. These units supply the right pressure and flow rate right when needed, with speed and correctness. This cuts out waste from excess flow.

Advanced High-Pressure Sealing

Any leak harms accuracy. To keep our Servo Cylinder solid at 35 MPa pressure, we fit high-grade imported Parker/Simrit seals. We pick these for their strong hold against pressure and heat. This keeps the cylinders’ insides steady. Also, our build method uses Friction Welder technology. It forms precise joints without tiny holes or rough spots. In this way, it safeguards the cylinder body’s structure.

Resistance to Extreme Environments

Be it ocean salt mist or thin air at great heights, our items stand up to it all. Newstar created a special high-corrosion, crack-free chrome plating. This green plating method reaches a hardness above 950 HV. It has cleared SGS neutral salt spray (NSS) checks lasting more than 1500 hours.

High-Precision Aerospace Operations

In aerospace, the Servo Cylinder plays a key role in movement and oversight. The field calls for parts that manage fast repeats and total trust.

Actuation for Critical Flight Systems

Our Servo Cylinder and Linear Cylinder options serve in ground gear and possibly in flight control test setups. These tests mimic true air forces exactly. The tight build and flexible setup of our cylinders let them fit into tricky aerospace machines.

Reliability in High-Altitude Scenarios

Trust in aerospace leaves no room for doubt. Our Intelligent Test Station checks that each Servo Cylinder from the plant has pressure handling within 0.5%. This steady output means that when a flyer or auto setup starts an actuator, the reaction stays the same every time.

Marine and Offshore Applications

Sea work brings distinct hurdles: big loads, nonstop shifts, and sharp salt damage. Newstar meets these with targeted sea actuators.

Optimizing Anchor Thruster Systems

Our Anchor Thruster and Oil Cylinder Actuator systems matter for current ship placement. In sea drilling or deep ocean probes, holding an exact spot against water flows demands fast, high-turn response. Only a Servo Cylinder gives that. The closed-loop method lets thrusters offset wave pushes live. This shields the ship and its people.

Deep-Sea Submersible Reliability

For work underwater, we offer the Submersible operation platform and a linked Lifting Cylinder. These must face huge outside water pressure during fine jobs. With our rust-proof plating, these sea parts last for years in tough salt water without breaking.

The Newstar Quality Advantage

Specialized R&D and Customization

We run three production sites—in Yantai, Linyi, and Thailand—spanning 185,000 square meters. This size lets us use top tools like spectrometers and three-dimensional coordinate measuring machines. They confirm every piece hits the plan. Our R&D hub focuses on tailoring the Servo Cylinder, Tension Cylinder, or Self-locking Cylinder to match clients’ special “non-standard” needs.

Proven Global Reliability Standards

We stand by our work with world approvals like IATF16949 and ISO14001. From 2009 on, we have sent more than 200,000 cylinders to top makers. Zero mishaps trace back to cylinder faults. To add extra peace of mind for partners, we give PICC coverage up to $1 million for each event.

Conclusion

Adding a Newstar Servo Cylinder to exact aerospace and sea systems means more than a simple machine boost. It signals a pledge to safety, smooth work, and technical skills. We fix the trickiest control issues in harsh spots—from 1500-hour salt spray hold to 0.5% pressure accuracy. This shows that power and care can go together.

Be it steadying a vessel or running an air test frame, our “Zero-Release” build ways and years of know-how make sure your work rests on solid quality ground. Reach out to Newstar now and talk about how our made-to-order Servo Cylinder answers can improve your upcoming exact aerospace or sea task.

FAQ

Q: What is the main purpose of a servo cylinder?

A: A Servo Cylinder from Newstar acts as a high-output, closed-loop managed mover. It pairs a usual hydraulic push with servo tech to handle position, speed, and force just right in key tasks.

Q: How does a servo cylinder achieve high precision?

A: It gains top accuracy via built-in sensors and return loops for live fixes. For one, Newstar gear shows pressure handling within 0.5% in checks. This brings steady and even output.

Q: Can your servo cylinders withstand corrosive marine environments?

A: Yes. Newstar applies a special high-rust, no-crack chrome layer. It lasts over 1500 hours in neutral salt spray (NSS) trials. This suits sea builds and offshore gear well.

Q: What industries typically use servo cylinders?

A: Though useful in many places, these cylinders fit best in top cases like aerospace, ship making, heavy work, and special sea jobs. There, exactness and trust are musts.

Q: What technical parameters does the Servo Cylinder support?

A: Our Servo Cylinder handles bore sizes of 60-500 mm. It takes pressures to 35 MPa. The top push hits 680 T. This covers many heavy and exact jobs.
