How Jib Cylinders Improve Boom Lift Performance and Safety

Newstar, a reliable brand in construction machinery parts, keeps improving efficiency and safety in aerial work platforms. Job sites now need more accuracy and adaptability. The jib cylinder stands out as a key part in boom lift systems. This piece looks at how Newstar’s improved hydraulic jib cylinders boost boom lift operation, ease of handling, and operator safety. These features make them essential in today’s construction gear.

The Role of Jib Cylinders in Boom Lifts

Function of a Hydraulic Jib Cylinder

A jib cylinder handles the secondary boom angle for exact placement. It allows even movement to access tricky spots. Plus, it offers steady support for loads during lifting and stretching.

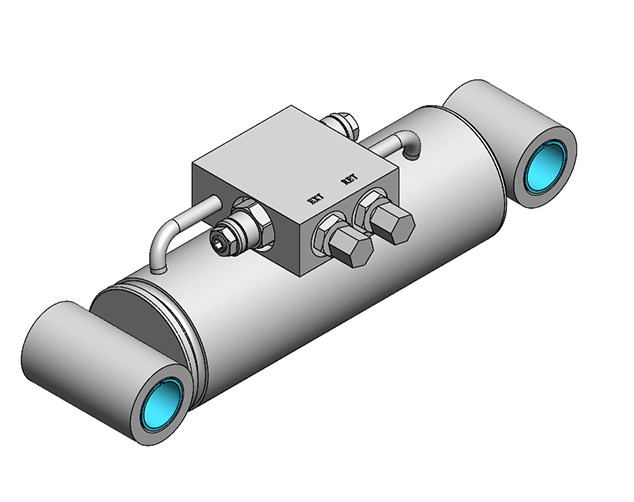

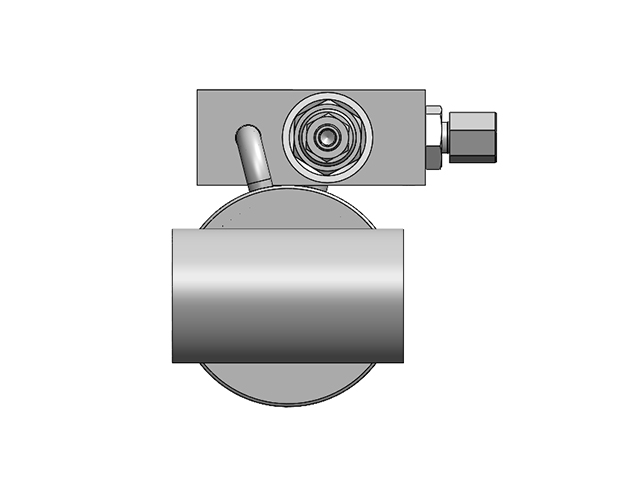

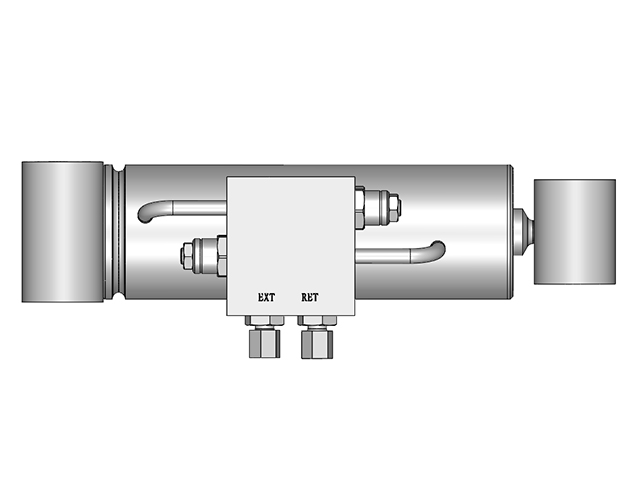

From Newstar’s product details, the jib cylinder fits at the connection between the platform and the arm frame. It acts as a main hydraulic part that manages the side-to-side turn or up-and-down swing of the work arm. Key specs cover a bore from 60–90 mm, rod size of 25–50 mm, stroke of 90–500 mm, overall length of 270–700 mm, working pressure up to 21 MPa, and max push of 13 tons. Such details mean every action happens with accuracy and stability.

Importance of Aerial Work Platforms

In setups like telescopic and articulating boom lifts, jib cylinders add range of motion through angle changes. They help reach tough spots or avoid barriers. At the same time, they keep lifting steadily under different weights.

Newstar points out that its jib cylinders work well in aerial work platforms such as telescopic boom lifts and articulated boom lifts. Reasons include solid output, broad uses, straightforward handling, and simple setup.

Enhancing Performance with Newstar Jib Cylinders

Precision and Control Advantages

Newstar’s design skills make sure each hydraulic cylinder gives sharp command over boom shifts.

The firm uses seals from imported Parker/Simrit for better handling of pressure and heat. It also uses optimized rod structures to help reduce overall weight while maintaining strength, yet keep the same power. This setup leads to easier starts and better fuel use in action.

Strong seal methods cut down on inside leaks. They hold steady pressure levels, which matters for workers needing reliable control at different levels. Optimized hydraulic system response helps provide smoother boom movement. Thus, operators get exact handling even in detailed tasks. For instance, on a busy site with uneven ground, this precision helps position the platform just right without extra effort.

Durability and Reliability in Harsh Conditions

Long-lasting build shapes Newstar’s approach to products.

According to Newstar, the chrome plating can achieve hardness above 950HV and strong salt spray resistance. This beats standard covers. So, the cylinders last longer in open-air settings or rough spots common on build sites.

Workers make each one from tough steel that handles ongoing heavy work. The mix of strong parts and smart surface work shortens repair times. It also keeps dependability steady over many years.

Safety Improvements Through Hydraulic Design

Stability During Complex Operations

Safety sits at the heart of our hydraulic build method. Newstar hydraulic cylinders keep balance in reach or turn actions. Stable hydraulic pressure control helps support smooth and controlled boom movement during operation. Consistent hydraulic pressure helps improve operational stability during boom articulation. Even motion cuts down on tilt dangers or sudden pulls, vital when carrying people or gear on raised setups.

Load Stability Under Dynamic Working Conditions

Boom lifts often operate on uneven ground, in windy outdoor environments, or under changing load conditions. In these situations, hydraulic stability becomes critical for safe and efficient platform positioning.

Newstar jib cylinders are designed to support stable boom articulation through optimized hydraulic flow control and rigid structural design. Consistent cylinder movement helps reduce unwanted vibration and improves positioning accuracy during elevated operations.

The combination of high-strength materials, precision machining, and reliable sealing performance allows the hydraulic system to maintain smooth operation even during frequent boom movements and continuous duty cycles.

Customization and Integration Capabilities of Newstar Cylinders

Tailored Solutions for Different Equipment Types

Each build job calls for specific machine setups, so fitting to needs is part of our core ideas.

At Newstar, we supply adjusted stroke sizes and attach points that match various boom lift types. Our jib cylinder adapts for small aerial units needing light action or big machines wanting long reach. It works with both telescopic and articulating designs, so it fits smoothly no matter the setup. For example, in urban projects with tight spaces, a custom short-stroke version allows quick adjustments without bulk.

Seamless System Integration

Easy fitting marks success in today’s hydraulic setups. Our jib cylinders join current hydraulic lines with little changes, thanks to flexible link points. Flexible mounting configurations help support integration with different hydraulic system layouts. This improves teamwork between the main lift arms and side jibs for matched moves.

Conclusion

Hydraulic jib cylinders are essential components in modern boom lift systems, directly affecting positioning accuracy, load stability, operational safety, and overall machine efficiency. From improving maneuverability in confined job sites to supporting smooth and stable boom movement at height, a well-designed hydraulic cylinder can significantly enhance aerial lift performance. Backed by advanced manufacturing facilities and years of hydraulic engineering experience, Newstar continues to support global customers with dependable hydraulic cylinder solutions designed for long service life and consistent performance in harsh operating environments.

Newstar offers customized hydraulic cylinder solutions for aerial work platforms, construction machinery, and heavy equipment applications. Whether you need improved load stability, smoother boom control, or durable cylinders for harsh environments, our engineering team can help you find the right solution.

Explore our hydraulic cylinder products or contact Newstar today to discuss your boom lift application requirements.

FAQ

Q: What is the main function of a jib cylinder in a boom lift?

A: The jib cylinder manages the angle and swing of the secondary boom arm. It boosts the precision in air tasks. At the same time, it keeps load stability throughout all movement stages.

Q: Why choose Newstar hydraulic cylinders for aerial lifts?

A: Newstar provides stable builds with Parker/Simrit seals. It includes rust-proof chrome plating checked by SGS. Plus, it offers fit options for many lift kinds.

Q: What maintenance advantages do Newstar hydraulic cylinders offer?

A: Our plating fights rust past 500 hours in NSS tests. Exact seals cut leaks, which lowers wear. This stretches repair gaps over the full use time.
