Dump Truck Cylinder Failure & Prevention Guide

Dump truck cylinders commonly fail in contaminated environments due to abrasive particles, corrosion, and seal degradation that lead to leakage, pressure loss, and premature system failure.

In the demanding worlds of waste management and heavy mining, equipment is only as strong as its weakest link. For heavy-duty vehicles, that link is often the hydraulic system, which must operate amidst abrasive dust, corrosive chemicals, and extreme physical stress. A Dump Truck Cylinder is expected to perform flawlessly under pressure, yet these harsh environments are breeding grounds for premature failure. At Newstar, we understand that downtime isn’t just an inconvenience—it’s a significant operational cost impact due to downtime. With production bases in Yantai, Linyi, and Thailand, our products power critical motion across sectors including mining, aerospace, and construction. This guide explores why hydraulic cylinder contamination occurs and how our advanced sealing and material optimizations prevent early breakdown.

Hazards of Waste and Mining Environments

Impact of Chemical Corrosion and Abrasive Dust

The conditions prevailing in waste management and in mining are harsh. With waste disposal, cylinders are often subjected to “leachate,” which is extremely corrosive due to the decomposition of organic compounds. The liquid eats away any normal coating applied, resulting in corrosion on the hydraulic cylinders and causing the structure to lose its structural integrity. However, in the case of mining, microscopic hard particulate materials are generated.

Challenges for Waste Truck Hydraulic Cylinder Longevity

The waste truck hydraulic cylinder faces a dual threat: high-frequency operation and extreme external pollution. Unlike a construction cylinder that might remain static for long periods, a garbage truck cylinder undergoes constant cycles of extension and retraction. This mechanical fatigue, combined with the ingress of slurry and grime, creates a high-risk environment for industrial hydraulic cylinder failure. We have found that without specialized protection, standard components often fail within a fraction of their intended service life.

Mechanisms of Dump Truck Hydraulic Cylinder Failure

Seal Degradation and Internal Hydraulic Leakage

The most common cause of hydraulic cylinder seal failure in waste trucks is particulate ingress. When abrasive dust bypasses the wiper seal, it enters the primary sealing system. This results in “scoring” or micro-grooves on the seal surface. Once a seal is compromised, internal hydraulic leakage occurs, where fluid bypasses the piston head. This reduces the lifting capacity of the dump truck cylinder, often causing cylinder drift or inability to maintain load position, which is a major safety concern.

Surface Scoring and Piston Rod Damage

The piston rod is the most exposed component of the system. In mining, flying debris and grit cause surface scratches. As the rod retracts, these scratches carry contaminants directly into the cylinder body, accelerating hydraulic cylinder contamination. Significant rod damage is one of the leading causes of a dump truck cylinder leaking oil. At Newstar, we address this by ensuring our rods have exceptional surface hardness, to resist these mechanical abrasions.

Hydraulic System Contamination Problems and Risks

Contamination is rarely localized. Once particles enter the cylinder, they travel through the entire hydraulic circuit, damaging pumps, valves, and motors. This systemic hydraulic system contamination problem can lead to catastrophic equipment failure. Understanding why hydraulic cylinders fail in contaminated environments is the first step toward preventing a total system breakdown that could cost tens of thousands of dollars in repairs and lost productivity.

Why Newstar Outperforms in Contaminated Environments

Advanced Seal Materials for Maximum Protection

To combat the rigors of harsh environments, we utilize premium materials such as imported Parker or Simrit seals. These seals are specifically chosen for their superior pressure and temperature resistance. By integrating high-performance wiper seals that remove contaminants from the rod surface before retraction, Newstar significantly reduces the risk of dump truck hydraulic cylinder failure. Our design ensures that even in slurry-heavy waste environments, the internal components remain pristine.

High-Hardness and Corrosion-Resistant Plating Solutions

One of our core technological advantages is our Proprietary high-corrosion, crack-free chrome plating. While traditional coatings might last 200 hours in a salt spray test, our advanced plating has been verified by achieving up to 500 hours of salt spray resistance in testing. This provides an impenetrable barrier against the corrosive fluids found in waste management.

Precision Testing for Dump Truck Cylinder Reliability

Every dump truck cylinder we manufacture undergoes rigorous validation in our Intelligent Test Stations. We use servo motors and sensors with closed-loop control to test breakaway pressure, stroke, and both internal and external leakage. Our dump truck cylinder is designed with a bore range of 60- 120 mm and a rod range of 30- 80 mm, capable of handling an operating pressure of 25MPa and a maximum thrust of 28T. This precision testing ensures that every unit meets the highest standards of dump truck cylinder reliability before it ever reaches the field.

Strategies to Prevent Premature Hydraulic Failure

Regular Maintenance and Fluid Cleanliness Monitoring

To extend hydraulic cylinder life, operators must prioritize oil cleanliness. Using our onboard oil cleanliness testers, we recommend regular monitoring of the hydraulic fluid to ensure it meets ISO standards. Preventing mining truck hydraulic cylinder failure reasons often starts with a simple filter change. If the oil is cloudy or dark, it is already saturated with contaminants that will destroy your seals.

Choosing Optimized Industrial Hydraulic Cylinder Solutions

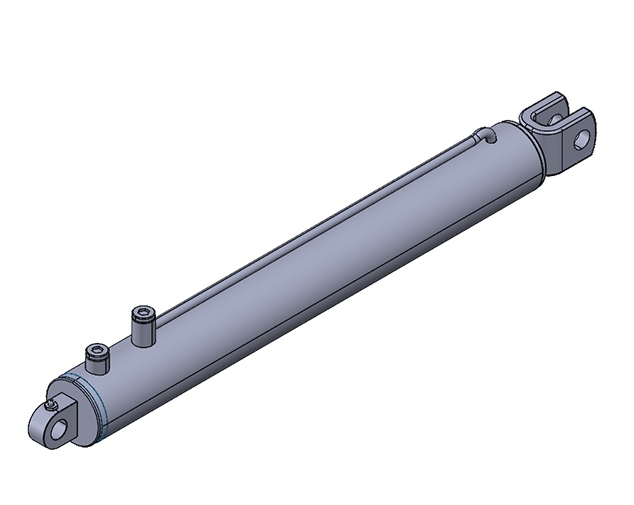

Selecting the right equipment from the start is critical. Our dump truck cylinder is specifically engineered for municipal service vehicles and garbage trucks where pollution is heavy. By choosing a cylinder with strong load-bearing capacity and fast lifting speeds, you reduce the strain on the overall system. We also offer hollow rods that can reduce weight by over 30% without sacrificing strength, which improves the overall fuel efficiency of the vehicle.

Conclusion

Navigating the complexities of operating a hydraulic cylinder in harsh environments requires a balance of robust design and specialized material science. As we have explored, the primary reasons why hydraulic cylinders fail in contaminated environments involve a combination of abrasive wear and chemical attack. By focusing on the core causes of dump truck cylinder oil leaks—such as seal degradation and rod corrosion—Newstar has developed a product line that redefines dump truck cylinder reliability. Investing in high-quality components is the ultimate strategy to maintain peak operational efficiency and significantly reduce the risk of industrial hydraulic cylinder failure in the world’s toughest industries.

Contact Newstar today to discover how our specialized dump truck cylinder solutions can eliminate your downtime and solve your hydraulic system contamination problems.

FAQ

Q: What are the most common mining truck hydraulic cylinder failure reasons?

A: In mining, the primary failure reason is hydraulic cylinder contamination caused by abrasive grit. These particles score the piston rod and tear through internal seals, leading to pressure loss and dump truck hydraulic cylinder failure. Environmental factors like extreme vibration and heavy impact loads also contribute to structural fatigue over time.

Q: What are the signs that a dump truck cylinder leaking oil causes?

A: Visible oil on the piston rod, a irregular motion or loss of hydraulic stiffness, or the cylinder’s inability to hold a load (drifting) are key indicators. These are usually caused by hydraulic cylinder seal failure in waste trucks or surface damage on the rod that allows oil to bypass the primary high-pressure seals.

Q: How does Newstar improve dump truck cylinder reliability?

A: We enhance dump truck cylinder reliability by combining high-end components with precision manufacturing. This includes using high-performance imported sealing systems for extreme temperature resistance and testing every dump truck cylinder at our Intelligent Test Stations to ensure they can safely handle operating pressures up to 25MPa.
