How Deviation Adjusting Cylinders Improve Conveyor Efficiency
In the high-stakes environment of underground coal mining and heavy-duty material handling, operational continuity is everything. Even a minor disruption in the mining conveyor system can cascade into significant revenue loss and safety risks. One of the most persistent challenges faced by site managers is the frequent misalignment of conveyor tails, a problem that leads to belt wear, material spillage, and costly unscheduled repairs. At Newstar, we understand that maintaining precise conveyor tail alignment requires more than just standard hardware; it demands specialized hydraulic precision. As a premier hydraulic cylinder manufacturer with more than 25 years of experience, Newstar has engineered advanced solutions to tackle the root causes of belt conveyor misalignment. Our mission is to ensure your operations remain fluid and efficient, leveraging our expertise in high-pressure hydraulics to protect your infrastructure from unplanned downtime.
Root Causes of Mining Conveyor Tail Misalignment
Impact of Uneven Roadways and Floor Heave
In the demanding environment of a coal mine, the geological conditions are rarely static. Uneven roadways and the phenomenon of floor heave—where the ground expands or shifts due to pressure—can significantly alter the levelness of the mining conveyor system. When the foundation of a self-adjusting tail device shifts even a few millimeters, the resulting angular deviation causes the belt to drift. We have observed that in many mining sites, the tail frame is subjected to constant subtle movements that manual adjustments simply cannot keep up with.
Equipment Vibration and Foundation Settlement Issues
Mining machinery operates under extreme stress. The vibration from nearby cutting heads and the continuous movement of heavy-duty vehicles can lead to foundation settlement. At Newstar, our research into industrial hydraulic solutions shows that constant mechanical oscillation can loosen mechanical fasteners and shift the guiding rails of the conveyor tail. Over time, this settlement creates a permanent offset, making it impossible for the belt to stay centered without a dedicated automatic alignment system.
Dynamic Belt Tension and Heavy Load Impacts
The dynamics of material loading play a huge role in why the conveyor belt runs off-center. When large volumes of material are loaded onto the conveyor belt, the sudden impact creates a surge in belt tension. This tension is not always distributed evenly across the width of the belt. If the tail mechanism is not robust enough to absorb these shocks, the frame can be pushed out of alignment. Our DEVIATION ADJUSTING CYLINDER is specifically designed to counteract these dynamic forces, providing the necessary resistance and corrective power to maintain conveyor tail alignment.
The Newstar Deviation Adjusting Cylinder Solution
Precision Engineering for Self-Adjusting Tail Devices

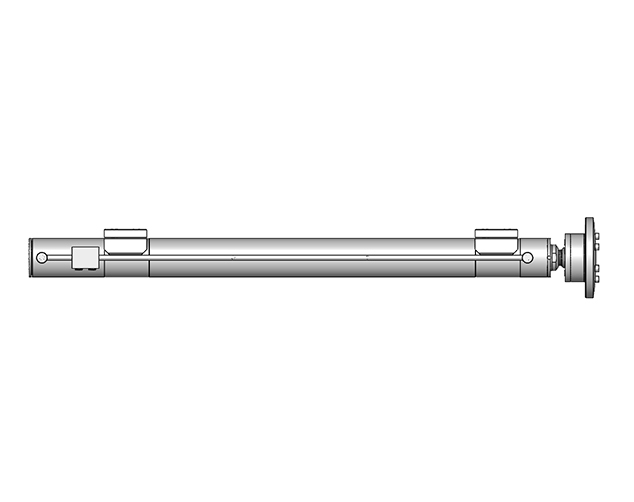

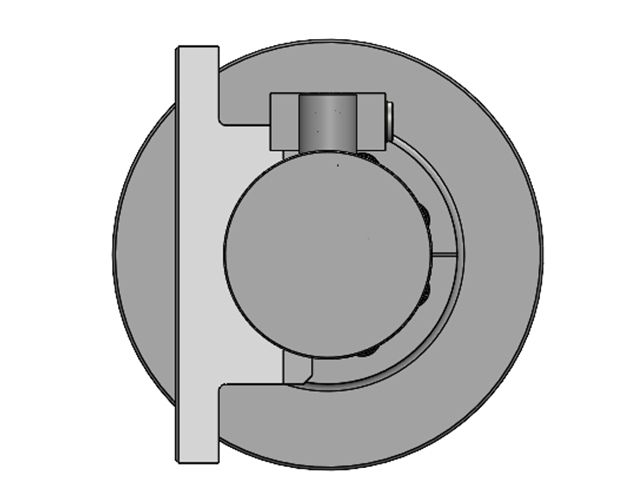

To solve the problem of misalignment, we developed the DEVIATION ADJUSTING CYLINDER. In a typical self-adjusting tail device, this cylinder is installed at the horizontal connection part between the tail frame and the base. It can also be found at the critical nodes where the tail connects with the middle trough or in coordination with guiding rails and slide blocks. This strategic placement allows the cylinder to act as the primary hydraulic actuation component, shifting the tail frame in real time to compensate for any detected drift.
Critical Technical Specifications for High Performance
We believe that reliability starts with robust specifications. Our DEVIATION ADJUSTING CYLINDER is built to handle the most rigorous mining tasks with the following parameters:
- Bore Range: 110 mm to 180 mm
- Rod Range: 80 mm to 120 mm
- Length: 1200 mm to 2200 mm
- Operating Pressure: Up to 35MPa
- Maximum Thrust: A powerful 80T
These specifications ensure that even under the maximum tension of a high-capacity mining belt, our hydraulic correction cylinder has the force required to re-center the system accurately.
Technical Advantages of Newstar Hydraulic Technology
Robust Construction for Harsh Mining Environments
Mining environments are notorious for dust, moisture, and corrosive elements. At Newstar, we utilize an advanced Eco-plating Line to give our products an edge. Our proprietary high-corrosion, crack-free double chromium coating has verified hardness exceeding 950HV. This ensures that the DEVIATION ADJUSTING CYLINDER remains operational even when exposed to the acidic water and abrasive dust common in underground mines.
Superior Sealing and Anti-Corrosion Protection
Leaking cylinders are a major cause of system failure. To prevent this, Newstar utilizes premium imported Parker and Simrit seals, known for their superior pressure and temperature resistance. Furthermore, we often employ hollow rods in our designs, which can reduce weight by over 30% compared to solid rods without sacrificing structural integrity. This combination of world-class sealing and intelligent material selection means our hydraulic correction cylinder offers a longer service life and reduced environmental impact.
Intelligent Testing for Guaranteed Field Reliability
Before any Newstar product reaches a customer, it undergoes rigorous validation. Our Intelligent Test Station uses servo motors and sensors connected with closed-loop control to test breakaway pressure, stroke, and leakage.
Benefits of Implementing Automatic Conveyor Alignment
Drastic Reduction in Unplanned Equipment Downtime
The most immediate benefit of installing a Newstar DEVIATION ADJUSTING CYLINDER is the reduction in downtime. Manual alignment is a slow process that requires halting production. By automating this with a self-adjusting tail device, corrections happen “on the fly.”
Lower Maintenance Costs and Extended Component Life
When a belt runs off-center, it grinds against the conveyor structure, leading to premature wear of the belt edges and the rollers. By maintaining perfect conveyor tail alignment, you extend the life of these expensive consumables.
Enhanced Operational Safety for Mining Personnel
Safety is our top priority. Manual belt adjustment in a confined underground space is inherently dangerous. By utilizing a Newstar automatic alignment system, you remove the need for personnel to work in close proximity to moving belts and high-tension machinery. Our commitment to safety is further backed by PICC liability coverage, providing peace of mind that you are using products from a manufacturer that stands behind its engineering.
Conclusion
Solving the puzzle of why the conveyor belt runs off-center is critical for any modern mining operation. As we have explored, factors ranging from geological instability to heavy load shocks constantly threaten the alignment of your mining conveyor system. The Newstar DEVIATION ADJUSTING CYLINDER stands as a robust automatic conveyor alignment solution, specifically designed to counteract these forces in real time with up to 80T of thrust and 35MPa of pressure. By integrating our high-performance hydraulics—manufactured with world-class Eco-plating and precision testing—operators can transform a problematic tail into a cornerstone of efficiency. Investing in Newstar is not just about purchasing a cylinder; it is about securing the productivity, safety, and longevity of your entire industrial infrastructure.
Contact Newstar today for a professional consultation on the best deviation-adjusting cylinder manufacturer solutions to optimize your conveyor system’s uptime.
FAQ
Q: How does a deviation-adjusting cylinder improve efficiency?
A: A Newstar DEVIATION ADJUSTING CYLINDER provides active, high-thrust correction (up to 80T) to the tail frame. By automatically correcting running deviations through an automatic alignment system, it ensures the conveying system remains perfectly aligned, which minimizes belt wear and prevents the costly downtime associated with manual adjustments.
Q: What are the technical specifications of the Newstar DEVIATION ADJUSTING CYLINDER?
A: Our cylinders feature a bore range of 110- 180 mm, a rod range of 80- 120 mm, and lengths from 1200 mm to 2200 mm. They are designed for an operating pressure of 35MPa and can provide a maximum thrust of 80T, making them suitable for the most demanding mining applications.
Q: What makes Newstar cylinders more durable than competitors’?
A: Newstar utilizes proprietary high-corrosion, crack-free chrome plating that has a hardness of over 950HV. We also use premium Parker/Simrit seals.
