Top Anchor Bolt Drilling Machine for Safer Roof Bolting
In the unforgiving environment of deep underground mining, the reliability of a support system is a critical component for every worker on-site. We have seen many mining enterprises face a common operational challenge: despite investing in high-grade anchor bolts, they continue to encounter roof instability, bolt failures, and high rework rates. At Newstar, our decades of experience as a specialized manufacturer of hydraulic cylinders and non-standard equipment have taught us that the root cause often lies not in the bolts themselves, but in the precision of the drilling equipment used to install them. As a professional hydraulic cylinder and mining equipment manufacturer established in 1999, Newstar is dedicated to bridging this gap. We provide the industry with the top anchor bolt drilling machine, a tool designed to improve underground operational safety.
The Foundation of Roof Bolting Quality
Precision in Drill Hole Accuracy

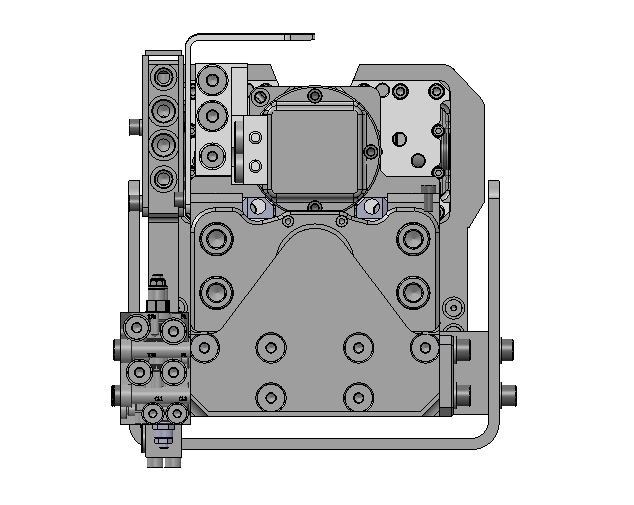

The top anchor bolt drilling machine is the primary equipment used to drill bolt holes for underground roof support. Roof Bolt Installation Quality is fundamentally dependent on three factors: the orientation, depth, and diameter of the hole. We have engineered our machines to ensure that these variables remain consistent even in varying geological conditions. For instance, our equipment is designed to handle an Operating Pressure of 21 MPa, providing a consistent Drilling Thrust of 2 T. This level of controlled power prevents hole deviation, ensuring that the anchor bolt can be inserted and tensioned precisely according to the engineering specifications.
Optimizing Anchor Bolt Installation Quality
Installation quality is the second pillar of roof support. A hole that is too shallow or a diameter that is inconsistent can lead to poor resin bonding or mechanical slip. At Newstar, we understand that a high-performance drilling machine must do more than just make a hole; it must prepare the rock for optimal bolt performance. Our top anchor bolt drilling machine features a versatile Stroke Range of 1200-3400 mm, allowing operators to adapt to different roof heights and bolting requirements with ease. This adaptability ensures that every bolt is installed at the correct depth, improving load transfer within the rock mass and enhancing roof support performance.
Ensuring Underground Mining Safety
Stabilizing Coal Mine Roof Support Systems
Unstable roof conditions are among the most significant risks in underground mining. By utilizing the top anchor bolt drilling machine, mines can significantly improve their support performance. The machine’s stability directly translates to a more predictable and secure rock mass. When the drilling is accurate, the resulting support system is robust enough to withstand the shifting pressures of the earth.
Reducing On-site Labor Intensity and Risk
Manual drilling is not only inefficient but also exposes workers to physical strain and proximity to unsupported roofs. Our machinery is designed to reduce labor intensity significantly. One of the standout features of the Newstar top anchor bolt drilling machine is its integrated hydraulic circuit. Unlike traditional machines that rely on multiple external hydraulic hoses and hard pipes, our design highly integrates the oil circuits within the support, clamping, feed, and drilling parts. This reduces the risk of high-pressure hose bursts—a common cause of injury—and simplifies the operation, allowing the crew to focus on safety rather than equipment troubleshooting.
Maximizing Mining Productivity and Efficiency
Accelerating Tunnel Development Speed
Efficient drilling is the bottleneck of tunnel development. A machine that is prone to failure or slow in operation can stall an entire mining project. The Newstar top anchor bolt drilling machine plays an important role in improving tunnel development efficiency by providing stable drilling performance and reducing equipment downtime. Because our oil circuits are low-maintenance hydraulic design and the structure is compact, the machine experiences minimal downtime. This allows for a continuous workflow, reducing material handling requirements and increasing the overall utilization rate of the tunnel cross-section.
Lowering Long-term Maintenance and Labor Costs
Maintenance in an underground mine is a logistical nightmare. Every hour spent fixing a machine is an hour of lost production. We have addressed this by designing our drilling machines with high power density and reliable operating performance. By reducing the number of external hydraulic hoses, we have removed the most common failure point in hydraulic systems. Furthermore, our use of premium components, such as imported Parker/Simrit seals, ensures that our equipment, including our linear cylinder and servo cylinder lines, can withstand the high pressures and abrasive dust of the mining environment for longer periods.
Advantages of Newstar Top Anchor Bolt Drilling Machine
Innovative Integrated Hydraulic Circuit Design

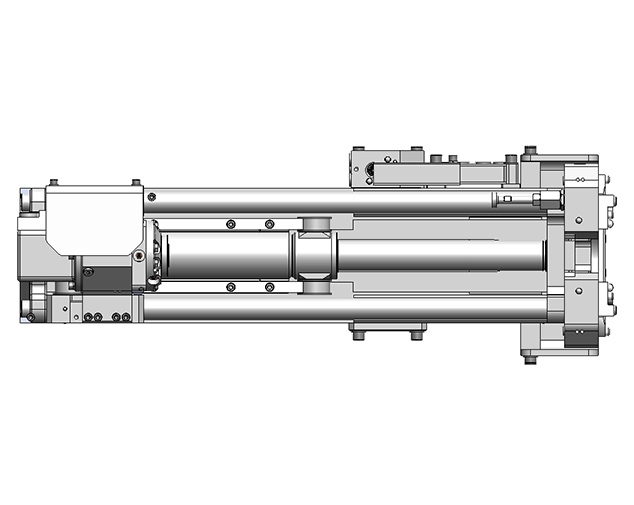

The core innovation of the Newstar top anchor bolt drilling machine is its internal integration. The support, clamping, feed, and drilling parts are all interconnected through a block-based hydraulic system. This design not only makes the machine more compact—with dimensions like 2400 × 460 × 500 mm—but also ensures high space utilization in tight tunnel environments.
Heavy-duty Reliability and Equipment Stability
Mining equipment must withstand demanding underground operating conditions. We use proprietary high-corrosion, crack-free chrome plating on our rods, verified by SGS to exceed 500 hours of salt spray resistance and achieve a hardness of over 950HV. This surface treatment technology is widely used in Newstar hydraulic cylinder products. This ensures that even in the humid and corrosive atmosphere of a coal mine, our machines maintain their precision and structural integrity.
Why Newstar Is Your Trusted Partner
Strict ISO-Certified Quality Assurance Systems
Quality is at the heart of our operations. We strictly comply with ISO/TS 16949 standards and utilize advanced tools like APQP and FMEA to ensure every machine undergoes comprehensive quality inspection before delivery. Our intelligent assembly lines use PLC control systems to record and save data automatically, ensuring that the performance of your Newstar equipment is both controllable and timely.
Custom OEM Mining Equipment Solutions
Every mine is different. Our R&D center is equipped to design customized, environmentally friendly products based on your specific geological requirements. From servo cylinders with 0.5% pressure control precision to complete anchor thrusters, we offer OEM/ODM services that cater to the unique challenges of construction machinery, mining, and heavy industry.
Conclusion
The choice of a top anchor bolt drilling machine is a decision that impacts every level of a mining operation, from the safety of the individual operator to the profitability of the entire enterprise. By prioritizing drilling accuracy, hydraulic stability, and integrated design, Newstar provides a tool that does more than just drill—it helps improve operational safety and productivity. Our commitment to quality, evidenced by our rigorous ISO certifications and advanced manufacturing processes, ensures that when you choose Newstar, you are choosing a partner dedicated to “Quality Changes the World.”
Looking for high-performance mining solutions? Explore the Newstar top anchor bolt drilling machine and our professional hydraulic components today to enhance your underground safety and efficiency!
FAQ
Q: How does a top anchor bolt drilling machine improve mining safety?
A: It improves safety by ensuring the precision of the bolt hole’s orientation, depth, and diameter, which are critical for effective roof support. Furthermore, Newstar machines use an integrated hydraulic circuit without external flexible hoses, which significantly reduces the risk of high-pressure leaks and mechanical failures that could injure operators.
Q: What are the common problems in underground roof bolting?
A: Common problems include drill hole deviation, inconsistent depth, and high labor intensity, all of which can lead to support failure. Using a high-precision tool like the top anchor bolt drilling machine helps reduce these risks by providing a stable Drilling Thrust of 2 T and a consistent Operating Pressure of 21 MPa, ensuring every bolt is installed correctly according to design specifications.
Q: Why choose a hydraulic anchor bolt drilling machine over traditional ones?
A: Hydraulic machines, especially those from Newstar, offer higher energy density and better stability. Our unique design integrates the oil circuits within the machine’s structure, making it compact for narrow tunnels and virtually maintenance-free. This leads to faster tunnel development and lower long-term costs compared to traditional, hose-heavy equipment.
